Main board SURFACE TREATMENT ON ALUMINUM CASTINGS.
MAXIMUM PROTECTION AGAINST CORROSION.
  • Corrosion Protection
  • MIL A 8625F and UNI 4522-66 compliant
  • Gray or black color available
  • UNI EN 12373 cmpliant

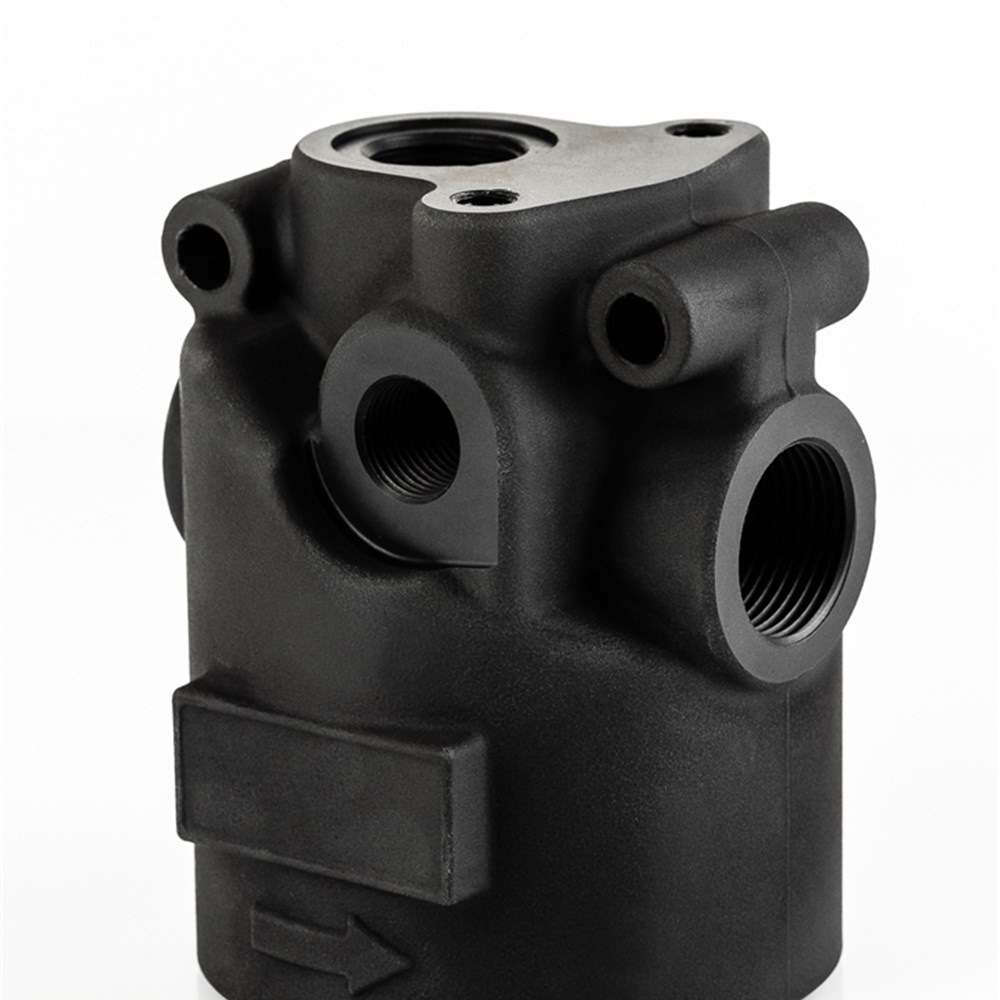

  • Ideal for castings and die-castings

Anodizing process oriented to castings and die-castings, characterized by a high silicon content. In addition to a good aesthetic appearance, it stands out for its very high resistance to corrosion.

Request a quote
Other informations
CORROSION RESISTANCE

The aluminum treated with the Zancofuso® process satisfactorily withstands atmospheric agents and chemical solutions with a pH varying from 4 to 9.
Its duration to corrosion, in addition to depend on the percentage of silicon of the base material present in the fusion or die-casting, it also depends on the thickness of the coating itself.

THICKNESS

Thicknesses are determined according to the final purpose. For parts used in closed environments, a layer of 5-10 microns is sufficient. For weathered parts a layer of 10 to 20 microns is recommended.

MATERIAL CHOICE

Zancofuso® was developed to solve problems on die-cast alloys with a percentage of silicon higher than 10%. It’s important having as base material a surface as much homogeneous as possible.

APPLICATIONS

Nautical, marine, automotive, motorcycle, textile, mechanical, electrical, aeronautical, agricultural machinery, packaging machines.
